Mix it up!

Fmix is a highly flexible, fully modular mixer. It features 8 mono inputs, 2 FX sends with stereo returns, and a stereo aux input which bypasses the FX, giving you extensive routing options.

The system is built from three modules:

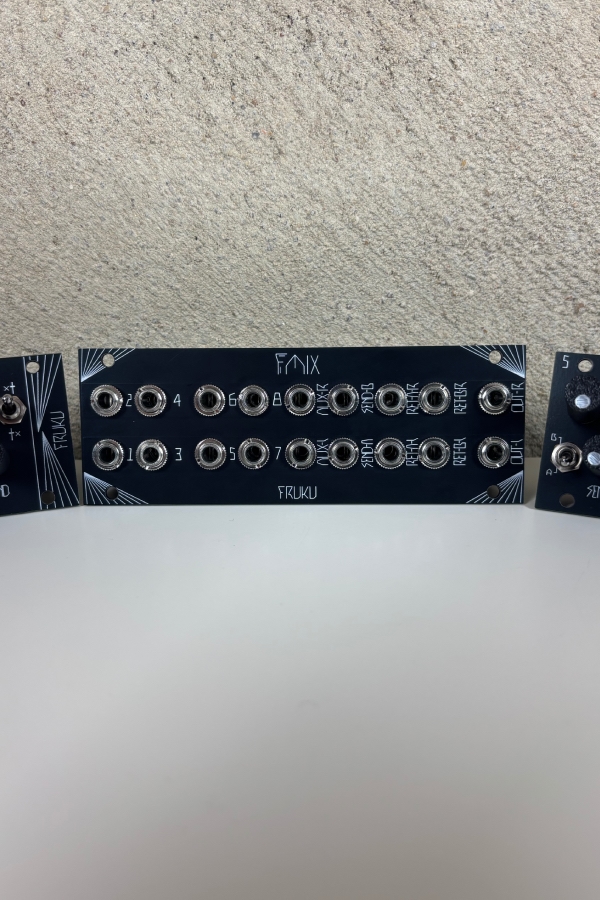

• Jacks Module – handles all input and output connections and draws power from your Eurorack power supply.
• Two Interface Modules – each provides level control, FX send, pre/post FX switching, and an A/B FX selector. These connect to the “jacks” module via ribbon cables, just like expander modules.

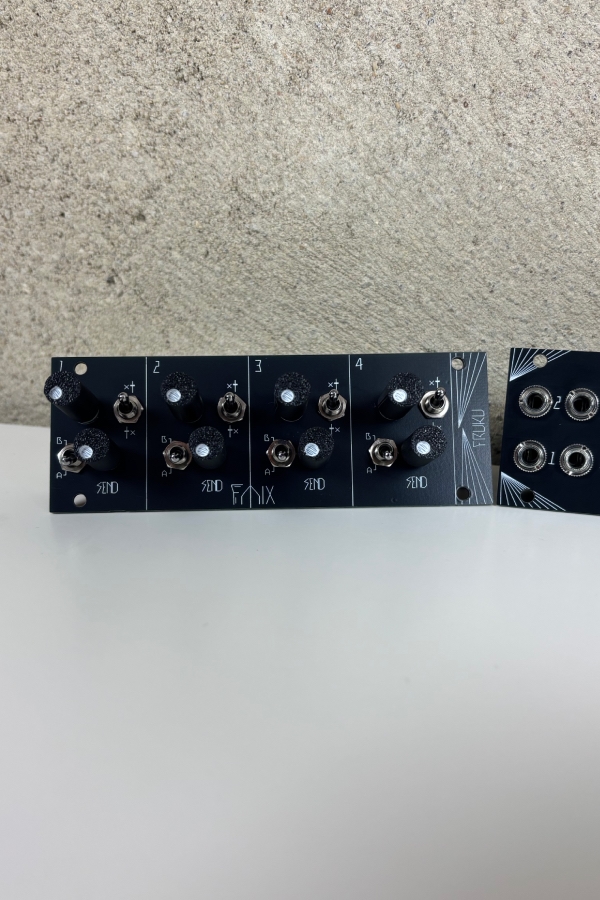

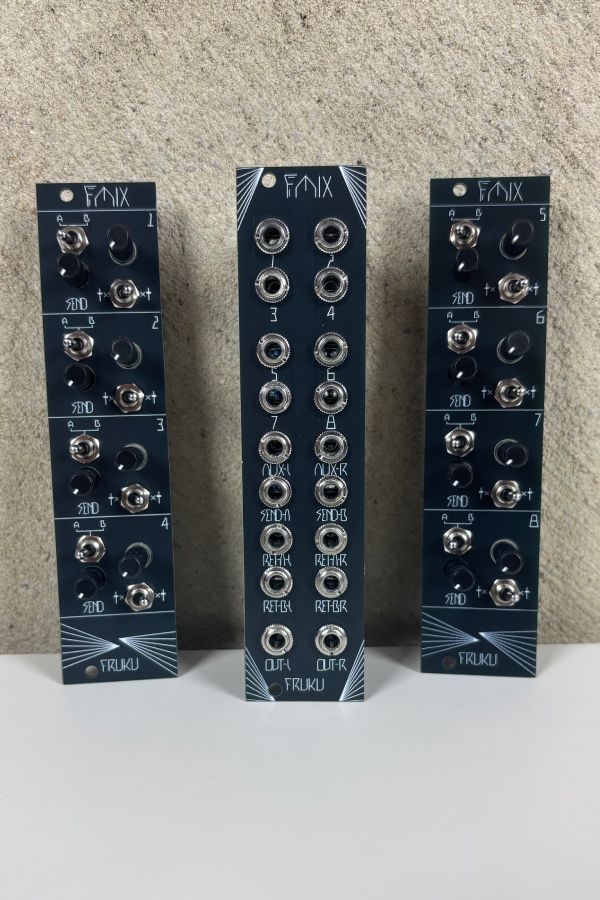

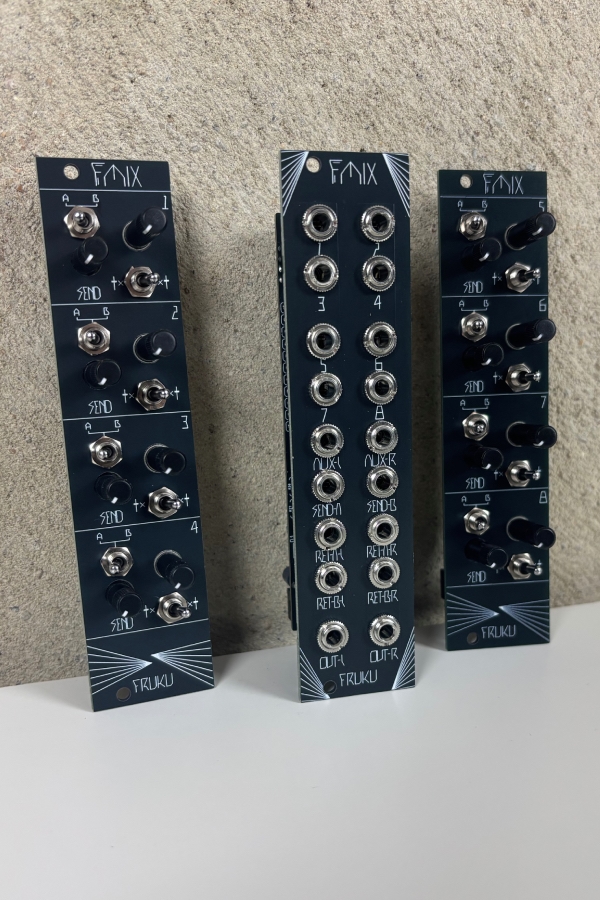

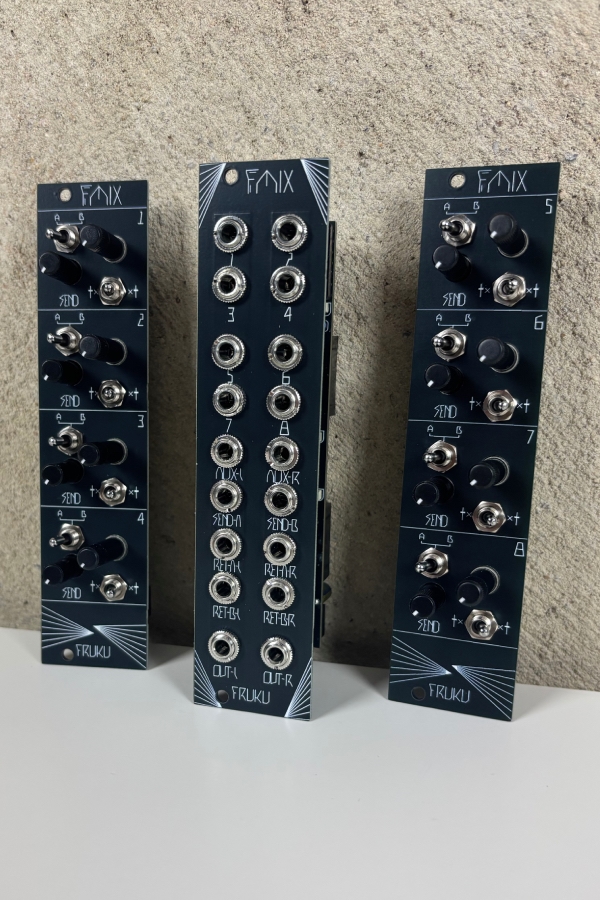

All three modules can be mounted in either 3U or 1U format, and each comes with front panels for both sizes, a total of six front panels are included.

6HP Each for 3U
22HP Each for 1U
30mA +12V
30mA -12V
